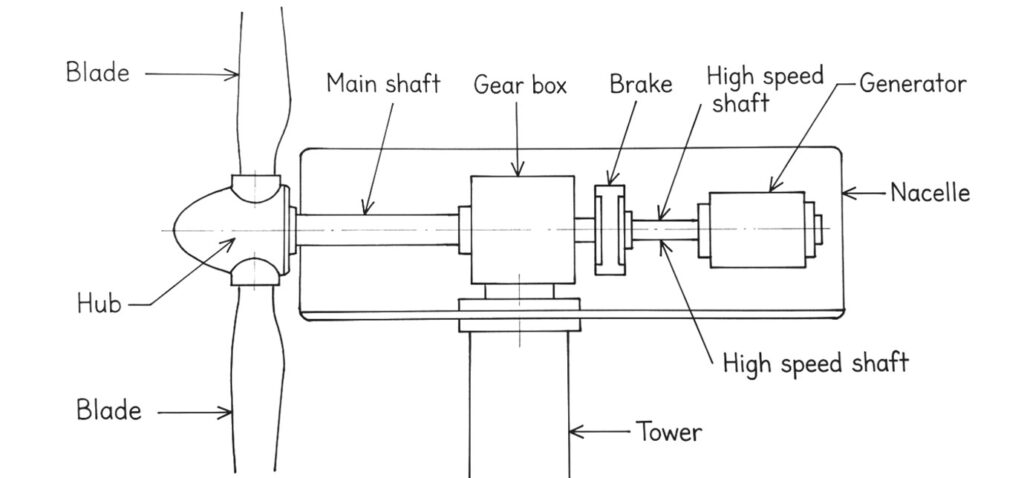

With a neat sketch explain the functions of the main components of a HAWT. -2022
Functions of Main Components of a HAWT
- Tower: Supports the turbine and places it at a higher height to access stronger winds.
- Rotor (Blades & Hub): Captures wind energy and converts it into rotational motion.
- Pitch Mechanism: Adjusts blade angle to control power and protect the turbine in high winds.
- Nacelle: Encloses key parts like gearbox, generator, and control system.
- Drive Shaft & Gearbox: Transfer and increase rotational speed from rotor to generator.
- Generator: Converts mechanical energy into electrical energy.
- Yaw System: Rotates the turbine to face the wind direction.
- Brake & Sensors: Brake stops the turbine; sensors measure wind speed and direction.
- Controller: Controls overall operation for safety and efficiency.
Detailed Explanation of Horizontal Axis Wind Turbine (HAWT):
A Horizontal Axis Wind Turbine (HAWT) consists of several important components, each performing a specific function for efficient power generation.
- Tower:
The tower is a tall support structure (50–120 m high) made of steel or concrete. It elevates the turbine so that the blades can access stronger and less turbulent winds at higher altitudes. - Rotor (Blades and Hub):
The rotor captures wind energy. The blades act like air foils and rotate due to lift force created by wind flow. The hub connects the blades to the low-speed shaft. - Pitch Mechanism:
It controls the angle of the blades. This helps in maximizing energy capture at different wind speeds and protects the turbine by adjusting or stopping the blades during high winds. - Nacelle:
The nacelle is a protective housing at the top of the tower. It contains key components like the gearbox, generator, and control systems. - Drive Shafts and Gearbox:
The low-speed shaft connects the rotor to the gearbox and rotates slowly. The gearbox increases this speed and transfers it to the high-speed shaft, which drives the generator. - Generator:
It converts mechanical energy from the rotating shaft into electrical energy. - Yaw System:
This system rotates the nacelle so that the rotor always faces the wind, ensuring maximum power generation. - Brake and Sensors:
The brake is used to stop the turbine during maintenance or emergencies. Sensors like anemometer (wind speed) and wind vane (wind direction) provide data for safe and efficient operation. - Controller:
The controller acts as the brain of the system, automatically controlling pitch, yaw, and braking to optimize performance and ensure safety.
